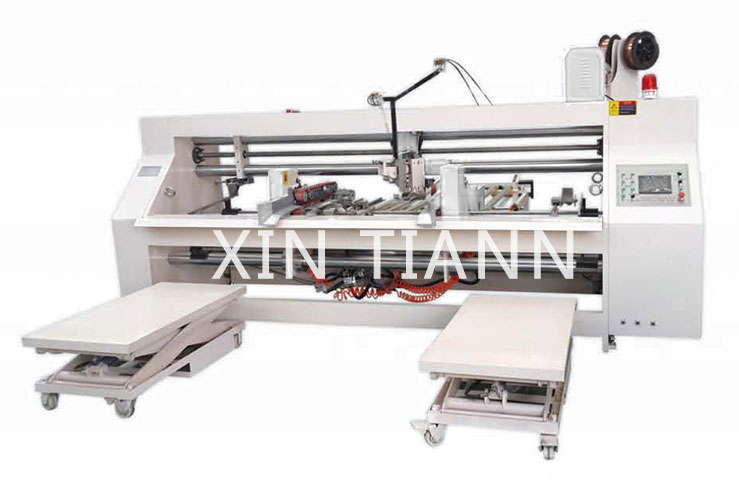

3000 High Speed Four Servo Driving Double Pieces Semi Automatic Stitcher

Specification：

The model and parameter SDJ-3000
Max.feeding size (A+B ) * 2 ( mm ) 6000
Min.feeding size (A+B) * 2 ( mm ) 1060
Max.carton length A mm 2850
Min.carton length A mm 350
Max.carton width B mm 1500
Min.carton width Bmm 160

Min.feeding height ( C+D+C ) ( mm ) 400
Max.swing top size C ( mm ) 560
Min.swing top size C ( mm ) 50
Max.height D ( mm) 2000
Min.height D ( mm ) 150
Max.nail tongue width (mm) 45

Feeding section：
● Japanese imported Yaskawa four driving servo motor, with high precision, mechanical transmission parts reduced as well as the mechanical failures.
● It can stitch box with cover or without.
● Speed: 600 nails/min.
● It can stitch single nail carton, double nail carton, and abnormal shape carton.
● Suitable for middle and small boxes, quickly and save labor greatly.
● Automatic wire feeding system, 20kg flat wire, alarming when wire used up, save time greatly.
● Isolating transformer can protect all the electrical equipment of The machine.
● Four servo driving motor used in this machine (two machine head motors and 2 for controlling nail space).
● This machine with four servo motor has apply for national patent, and the number is 201320093086.8.
