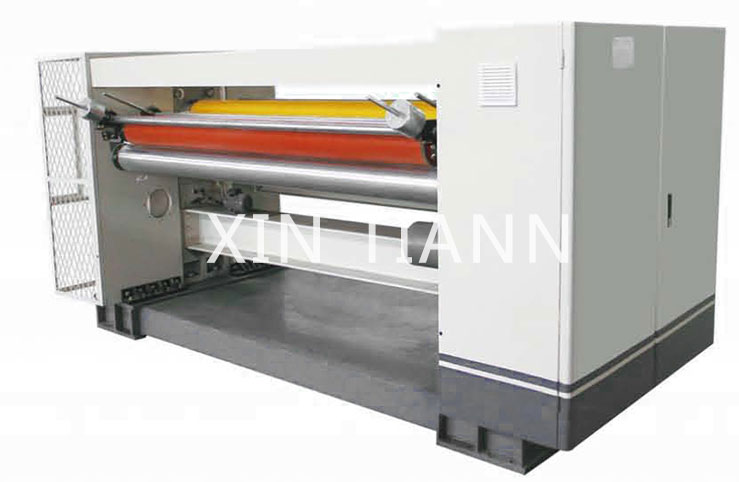

NC-25C N.C Cutter Helical Knives


●Design Speed: 200m/min-250m/min,Effective width: 1400mm-2500mm.
●Cutting length:500mm—9000mm, cutting precision ：±1mm ( Running at steady speed)
●Memory of 180 orders, change cutting size quickly and accurately, nonstop for changing orders and enables networked computers to facilitate production management
●Helical knives structure with HSS knife edge，serration type knife and scissor cutting with less shear force, to keep the knives long life.
●Front and behind feeding adopt sun wheel, smooth transportation and uniform pressure, avoid damage paperboard.
●Adjustable high precision non-gap gear to ensure cutting precision and running balance
●Knife shaft made by quality forged steel material, and running stable after balance treatment.
●Host base and machine frame adopt grey cast iron, to keep machine strong and stable
●Adopt Germany KEB servo system and 10.4 inches Taiwan Eview color Touch screen
